90 Full Hood Stick Frame Set
£590.00 – £1,000.00
The 90 Defender frame has all you need to fit a soft top to your Land Rover including all nuts, bolts and hooks; this kit does not include the side and tail hooks which are usually factory fitted to your vehicle. If you do not have these then you will need to order these separately to the frame kit, you will require 6 side hooks. The 90 Defender there are 2 different over screen rail types, these are round or flat.
The round front section has 4 grab handles which can be used to make the hood quick release or a sun roof option. This option is what we make as standard, so if you order the hood and frame this is the over screen type that you will usually get.
The flat front section has 6 bolts which is a more fixed option so has to be unbolted to be removed.
Typically, the round front is 1984 – 2001 then the flat section would typically be 2002 – 2016. PLEASE NOTE; You can have either front fitting.
Our frame kits are all proudly manufactured in the UK. With over 40 years’ experience working in the industry, we have been able to adapt and enhance our frames to ensure the perfect fit for your Land Rover type.
The frames are sourced from the UK and are as original as possible including 25mm 100% steel tubes with a 1mm wall and zinc galvanising to stop any rusting. All our frames are manufactured to fit canvas and mohair hoods (we can supply manufacture these as well). We can also supply these frames in black, the parts are galvanised first, rubbed down, primed and black powder coated for 2 layers of protection and finish. Heavy duty frames are becoming more popular in recent years and we have these available also both in Galvanised and Black finishes.
At AWT we understand that there are a multitude of ways you can modify your Land Rover and we can be flexible to cater for these modifications if you give us a call or email to let us know!

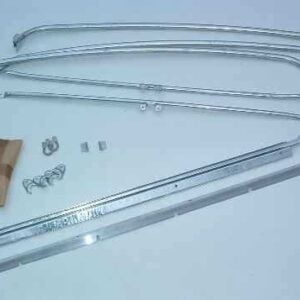

Your Kit Includes:
| 1x Over Screen Rail (Round or Flat Front) 2x Overdoor Panels LH/RH 2x Back of Door Panels LH/RH 1x Front Hoop 1x Middle ½ Hoop 1x Rear Hoop | 2x Tie Bars 4x Claw Hooks 2x Horse Shoe Hooks 2x Rope Hooks LH/RH 2x Staples 4x 8mm Bolts 4x Flat Head Bolts 4x Phillips Bolts | 8x 6mm Bolts 4x Square Nuts 24x 6mm Washers 20x 8mm Washers 12x 6mm Nylocks 4x 8mm Nylocks 12x Pop Rivets 6x Overdoor Panel Clips 4x Handles (Round front only) 1x Seal (Round front only) |
Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 160 × 22 × 100 cm |
| Finish | Black, Galvanised |
| Front Section | Flat, Round |
| 90/110 Header rail | Extruded aluminium |
| Hoops and tubes | Steel |
| Over door panels | Steel |
| Back of door panels | Steel |
| Galvanising | Zinc |
| Nuts & bolts | Cadmium plated |
| Over door panel clips | Plastic |
| Handles | Plastic |
