110 Crew Cab Hood Stick Frame Set


The 110 Crew Cab Defender frame has all you need to fit a soft top to your Land Rover including all nuts, bolts and hooks; this kit does not include the side and tail hooks which are usually factory fitted to your vehicle. If you do not have these then you will need to order these separately to the frame kit, you will require 10 side hooks.

Vehicle year of manufacture:
Vehicle chassis number:
Product total
Options total
Grand total
SKU: N/A Categories: , ,

Our frame kits are all proudly manufactured in the UK. With over 40 years’ experience working in the industry, we have been able to adapt and enhance our frames to ensure the perfect fit for your Land Rover type.

The frames are sourced from the UK and are as original as possible including 25mm 100% steel tubes with a 1mm wall and zinc galvanising to stop any rusting. All our frames are manufactured to fit canvas and mohair hoods (we can supply manufacture these as well). We can also supply these frames in black, the parts are galvanised first, rubbed down, primed and black powder coated for 2 layers of protection and finish. Heavy duty frames are becoming more popular in recent years and we have these available also both in Galvanised and Black finishes.

At AWT we understand that there are a multitude of ways you can modify your Land Rover and we can be flexible to cater for these modifications if you give us a call or email to let us know!

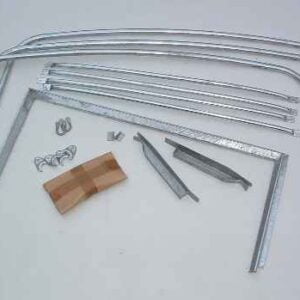

Your Kit Includes:

1x Front hoop

1x Middle ½ Hoop

1x Rear Hoop

2x Tie Bars

4x Claw Hooks

2x Horse Shoe Hooks

2x Staples

2x Rope Hooks LH/RH

1x Body Fit Drain Channel

1x Front Retaining Angle

4x Dzus Fasteners

4x Plastic Washers

4x 8mm Bolts

4x 8mm Washers

4x 8mm Nylocks

4x 6mm Bolts

4x 6mm Nylocks

4x Square Nuts

27x Pop Rivets

4x Dzus Plates

8x 4.00mm Rivets

Additional information

Weight30 kg
Dimensions155 × 18 × 96 cm

Black, Galvanised

Hoops and tubes




Nuts & bolts

Cadmium plated
