109 County Station Wagon Hood Stick Frame Set

£890.00£1,345.00

The 109 County Station Wagon 5 door series 2/3 frame has all you need to fit a soft top to your land rover including all nuts, bolts and hooks; this kit does not include the side and tail hooks which are usually factory fitted to your vehicle. If you do not have these then please state this when ordering so we can supply you with the correct amount, for the 109 CSW you will require 10 side hooks.

Best way to identity your land rover Is to check how many hooks your windscreen has, for the 109” you will have 7 hooks and for the county station wagon you will have 5 doors.

Vehicle year of manufacture:
Vehicle chassis number:
Product total
Options total
Grand total

Our frame kits are all proudly manufactured in the UK. With over 40 years’ experience working in the industry, we have been able to adapt and enhance our frames to ensure the perfect fit for your Land Rover type.

The frames are sourced from the UK and are as original as possible including 25mm 100% steel tubes with a 1mm wall and zinc galvanising to stop any rusting. All our frames are manufactured to fit canvas and mohair hoods (we can supply manufacture these as well). We can also supply these frames in black, the parts are galvanised first, rubbed down, primed and black powder coated for 2 layers of protection and finish. Heavy duty frames are becoming more popular in recent years and we have these available also both in Galvanised and Black finishes.

At AWT we understand that there are a multitude of ways you can modify your Land Rover and we can be flexible to cater for these modifications if you give us a call or email to let us know!

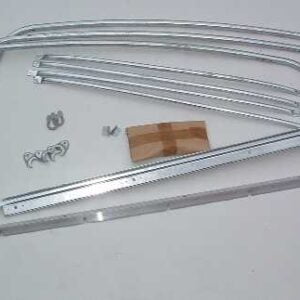

Your Kit Includes:

1x Over Screen Rail

2x Long Overdoor Panels LH/RH

2x Back of Door Panels LH/RH

1x Front Hoop

1x Middle ½ Hoop

1x Rear Hoop

2x Tie Bars

2x B-Post Middle Hoop Bracket

4x Claw Hooks

2x Corner Plates LH/RH

2x Horse Shoe Hooks

2x Rope Hooks LH/RH

4x Staples

4x 8mm Bolts

4x Flat Head Bolts

4x Phillips Bolts

8x 8mm Washers

4x 8mm Nylocks

20x 6mm Bolts

20x 6mm Nylocks

4x Square Nuts

40x 6mm Washers

4x Square Nut

20x Pop Rivets

Additional information

Weight30 kg
Dimensions160 × 22 × 100 cm
Finish

Black, Galvanised

88/109 Header rail

Steel

Hoops and tubes

Steel

Over door panels

Steel

Back of door panels

Steel

Galvanising

Zinc

Nuts & bolts

Cadmium plated
